Paper reel and core recycling
CAMEC plants are designed to handle waste reels. This means that they can effectively receive and process material even in the form of large reels, demonstrating their ability to handle particularly tough material without any problems.
Single-shaft shredder GSR480
GSR480 with 480 mm rotor is a single-shaft shredder with radial pusher and electric motor drive. These shredders are equipped with a grid to allow uniform piece size at outfeed.
- High shredding surface area
- Compact dimensions
- Bearings amply separated from the shredding zone
- Parallel shaft gear reducer
- Easy maintenance thanks to fully automatic opening of the compartment
- Screen maintenance
Single-shaft shredder GS650
GS650 with 650 mm rotor is a single-shaft shredder with radial pusher and electric motor drive able to guarantee high hourly throughput.
- Arc welded monobloc structure for elevated robustness
- Large shredding surface area and the maximum reliability
- Bearings separated from the shredding zone
- Parallel shaft gear reducer
- Easy maintenance thanks to fully automatic opening of the service compartment and the screen
Single-shaft shredder GS900
The high-powered GS900 shredder is a top-of-the range single-shaft machine with radial pusher, equipped with electric motor drive and able to guarantee high hourly throughput.
- Arc welded monobloc structure for elevated robustness
- Large shredding surface area
- Bearings amply separated from the shredding zone
- Parallel shaft gear reducer
- Easy maintenance thanks to fully automatic opening of the service compartment and the screen
Double rotor shredder DR450
The DR line double rotor shredder is a versatile and efficient machine, designed for special processing of the material.
Control of the outfeed piece size typical of a single-shaft machine is combined with high throughput thanks to the presence of two independent rotors and two screens.
- Arc welded monobloc structure incorporating a cutting chamber and a motors compartment
- Bearings located well clear of the shredding zone
- Cylindrical rollers fixed with bolt-on cutter supports
- Fixed blades made from special hardened steel

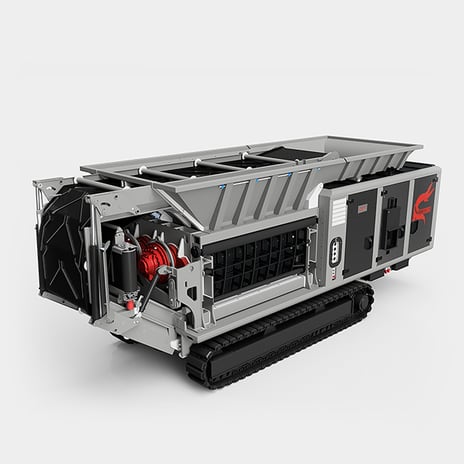

Mobile Shredder CAYMAN 2400
Powerful and self-propelled, for large-scale production.
2,350 mm cutting chamber, slow rotation and torque up to 350,000 Nm: CAYMAN 2400 is sized for large volumes and heavy materials.
Technical data CAYMAN 2400
- Engine: 566 kW Scania Diesel, EU Stage V
- Max torque: up to 350,000 Nm
- Cutting chamber: 2,350 × 1,600 mm
- Shaft speed: 12 – 30 rpm
- Hopper: 6 m³
- Final output size: ≤ 350 mm
- Magnetic separator: cross-belt
- Weight: approx. 39,000 – 42,000 kg
- Transport dimensions: 8,719 × 2,776 × H 3,400 mm
