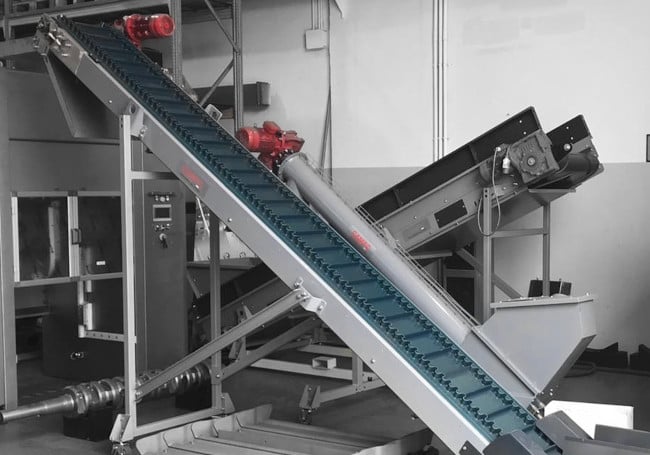

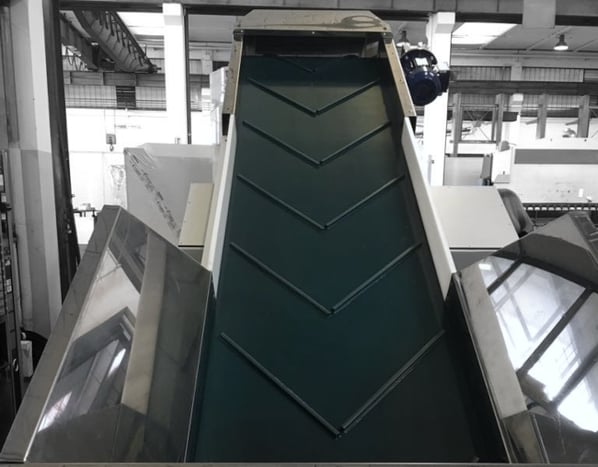

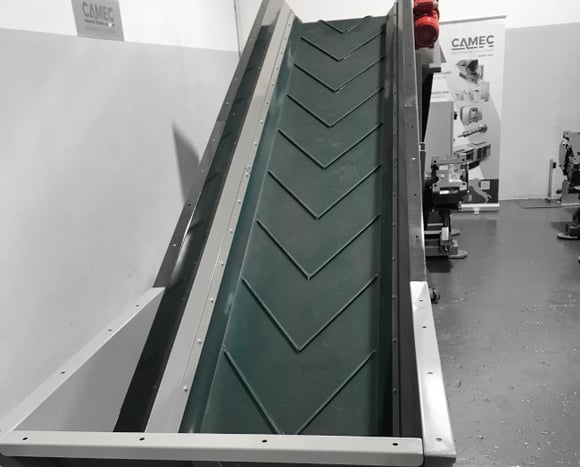

PVC belt conveyors

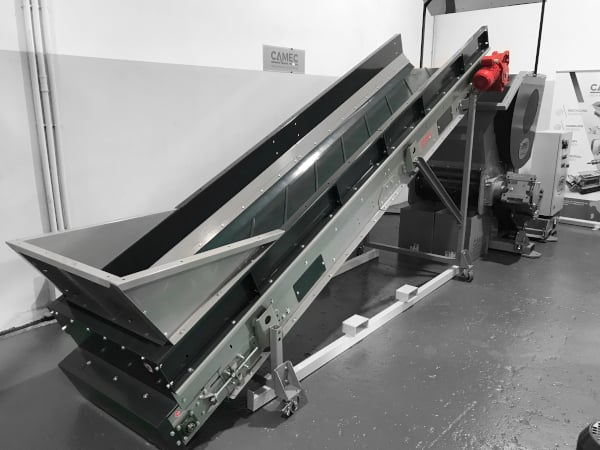

Made with a structure in painted Fe pressed profiles with a reinforced fabric PVC belt with cleats, these conveyors are ideal for transporting all types of light materials. The belt is equipped with a loading hopper to facilitate feeding operations.
Available versions
- NSL
- NSM
Description
Composed of a structure in press formed sheet steel with a PVC belt, this conveyor is ideal for transporting materials of all types.
The belt moves by sliding on the sheet metal bed.
The PVC conveyor belt with cleats is complete with supports, rollers, tracking profiles, drive head with gearmotor of suitable power, idle head, belt tensioner, containment sidewalls, possibly with hoppers in the initial section and height adjustable feet.
These belts can reach very high transport speeds.
Technical specifications
- Installed power: 3 kW
- Speed: approx. 30 m/min
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- loading hopper to feed the material to be carried onto the belt
.jpg?width=700&height=467&name=Nastro%20a%20sedia%20(2).jpg)

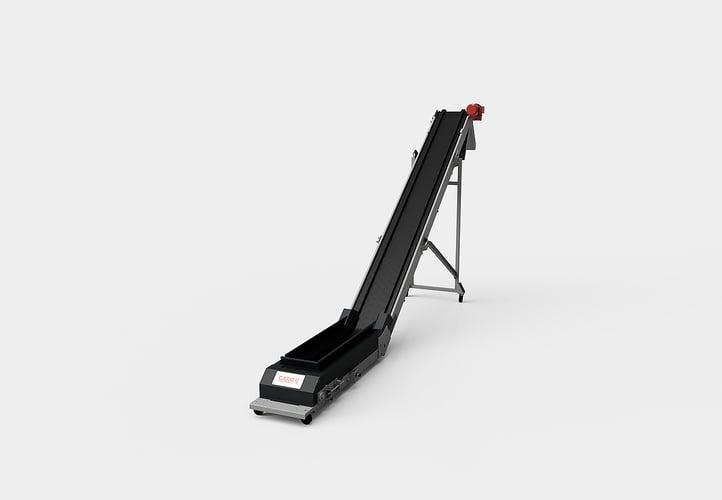

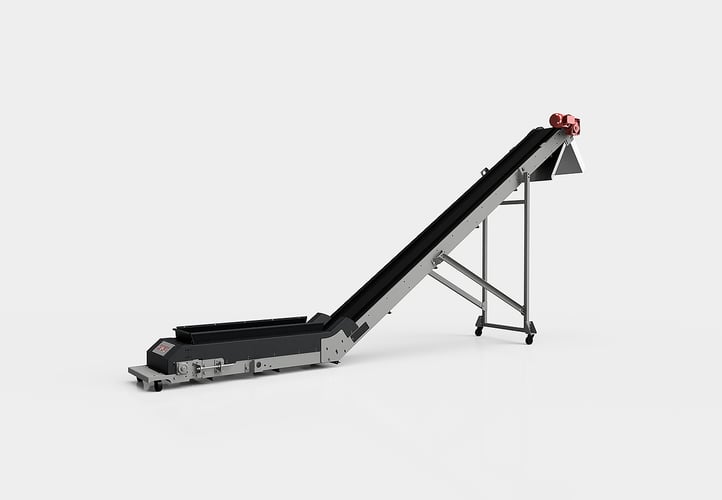

Rubber conveyor belts
Composed of a pressed sheet steel structure and triple ply rubber belt, rubber conveyor belts are suitable for transporting material of all types. The conveyor is equipped with lower idle rollers to support the belt.
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
- Installed power: 3 kW
- Speed 30 m/min approx.
Metal Slat Conveyors
In metal slat conveyors the frame is made of heavy gauge arc welded tubular sections with regularly spaced cross frames, suitable for transporting medium-heavy materials.
- heavy gauge metal slat conveyors, suitable for severe duty and with a long lifetime
- Generously sized drive unit with flanged shaft for easy maintenance
- Brake motor to prevent material slippage in case of system stops
- Pre-stretched drive chain with hardened wheels, bushes and pins
Rubber-faced Metal Slat Conveyors
The metal slats with back three ply rubber cladding allow use of these conveyors in medium-heavy load applications and with a high percentage of small piece sizes.
- Product containment sidewalls
- Support structure with height adjustable feet
- Side inspection hatches for easy access to the belt for maintenance
