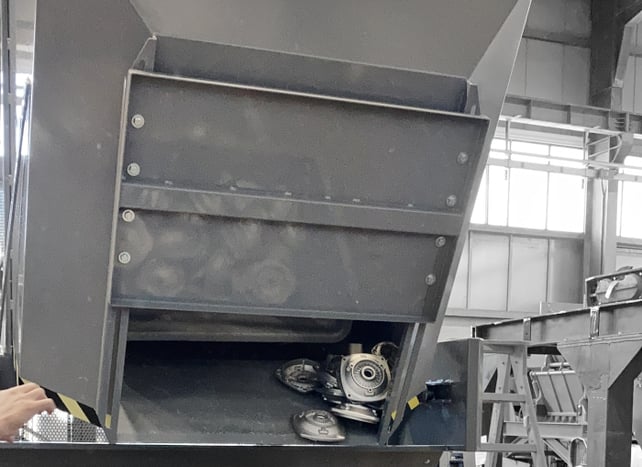

Guillotine Cover
Adjustable sheet metal panel, which, positioned on top of the trolley, allows adjustment of the material discharge opening.
Available versions
- AISI 304 coating
Description
The guillotine cover provides safety, protection and ease of use during the load-tipping process. Its presence allows efficient handling of materials, minimising snags and increasing overall productivity.
Made of AISI 304 steel, it allows the material outlet opening to be adjusted.
Technical specifications
- Electric-pneumatic operation.
- Chain lifting transmission.
- Bin locking grippers.
- Bin locking bar.
- Pneumatic valve for bin locking.
- Door retainer timed micron.
- Pneumatic-electric safety valve.
- Air connection: 90° connection for Rilsan hose diam. 8.
.c.jpg?width=700&height=467&name=rib%20con%20canala%20vibrante%20rosso%20arancio%20(7).c.jpg)
Gravity Cover
The cover is partly fixed and partly hinged, while the movable part of the cover is free to open according to the length of the chains.
- Electric-pneumatic operation.
- Chain lifting transmission.
- Bin locking grippers.
- Bin locking bar.
- Pneumatic valve for bin locking.
- Door retainer timed micron.
- Pneumatic-electric safety valve.
- Air connection: 90° connection for Rilsan hose diam. 8.
Cover with Pneumatic Actuator
A cover that is partly fixed and partly hinged, with the movable part of the cover controlled by a pneumatic-hydraulic actuator, which can retain the weight of the material during tipping until the actuator opening command.
- Electric-pneumatic operation.
- Chain lifting transmission.
- Bin locking grippers.
- Bin locking bar.
- Pneumatic valve for bin locking.
- Door retainer timed micron.
- Pneumatic-electric safety valve.
- Air connection: 90° connection for Rilsan hose diam. 8.
Cover with Motorised Hopper
High-performance dosing cover with a PLC-controlled pneumatic actuator
with a spout and support surface on the octabin to allow the return of partially spilled preforms into the octabin itself.
- Electric-pneumatic operation.
- Chain lifting transmission.
- Bin locking grippers.
- Bin locking bar.
- Pneumatic valve for bin locking.
- Door retainer timed micron.
- Pneumatic-electric safety valve.
- Air connection: 90° connection for Rilsan hose diam. 8.
