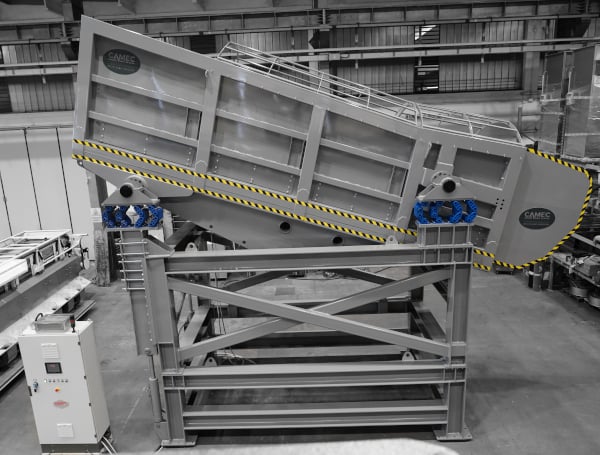

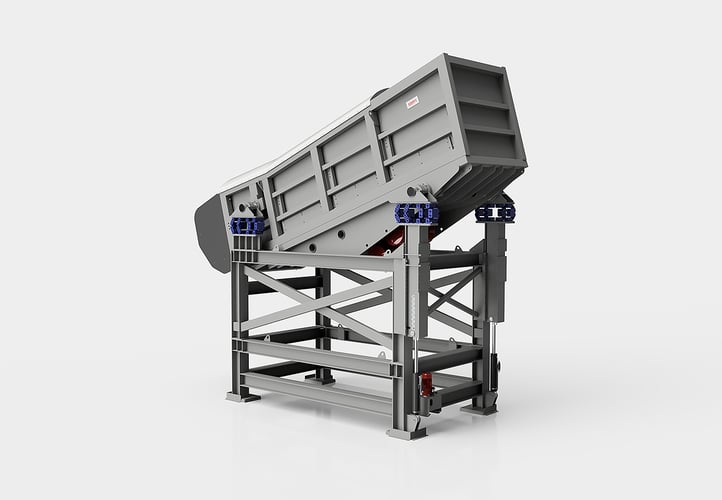

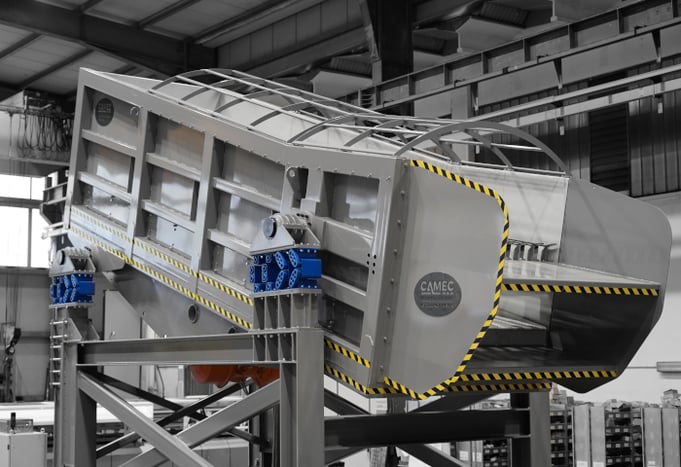

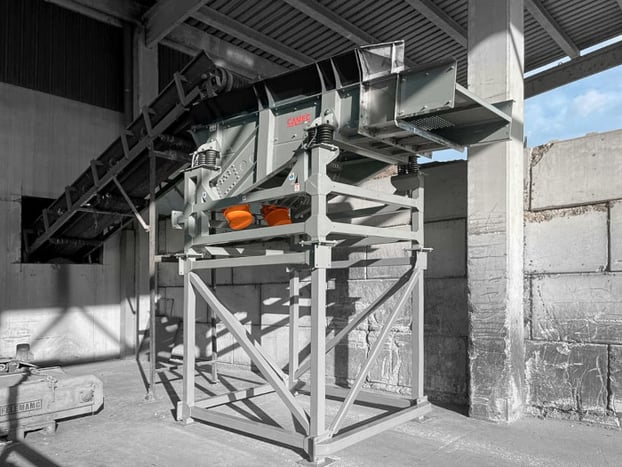

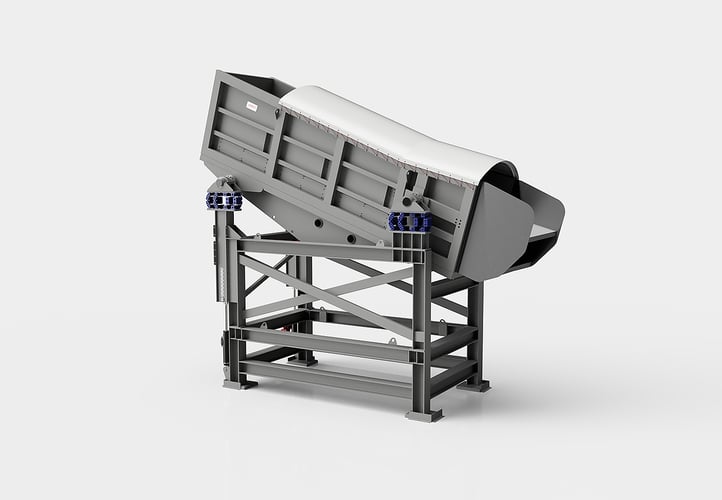

Vibrating screen
The vibrating screen exploits undulatory and shaking motion to separate the material from the powder/chips present in the feedstock, which is distributed uniformly over the entire surface of the vibrating screen for more effective separation in the subsequent stages.
Description
The vibrating screen is a system that exploits undulatory and shaking motion to separate the material from the dust/chips, thanks to the presence of a perforated surface over the entire length of the screen.
The material is also distributed over the entire surface of the vibrating screen uniformly to allow more effective separation in the subsequent phases.

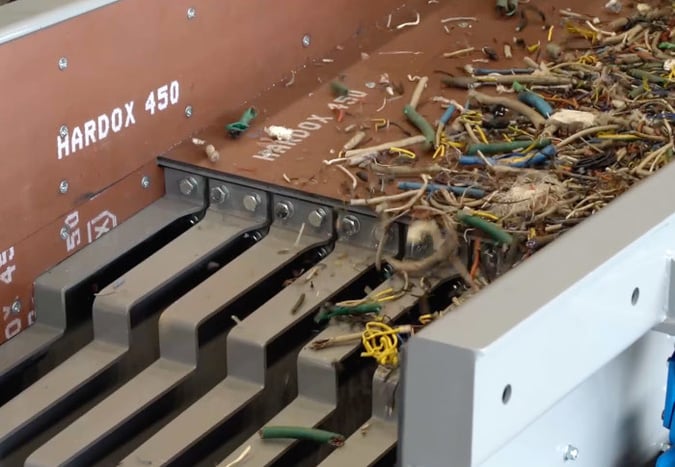

The dust or fine material drops from the underside of the screen through the holes in the transport bed, while the remaining material is discharged at the end of the trough conveyor.
The motors deliver mono-directional vibration, imparting movement and transport direction to the material.
Technical specifications
- Robust frame in arc-welded tubular members

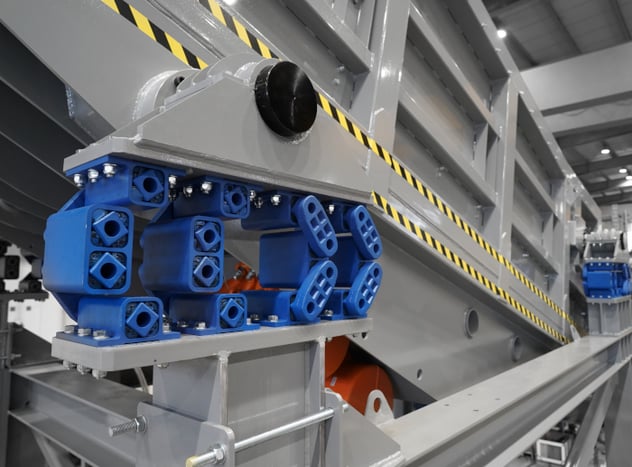

- Arc- welded trough resting on anti-vibration mounts

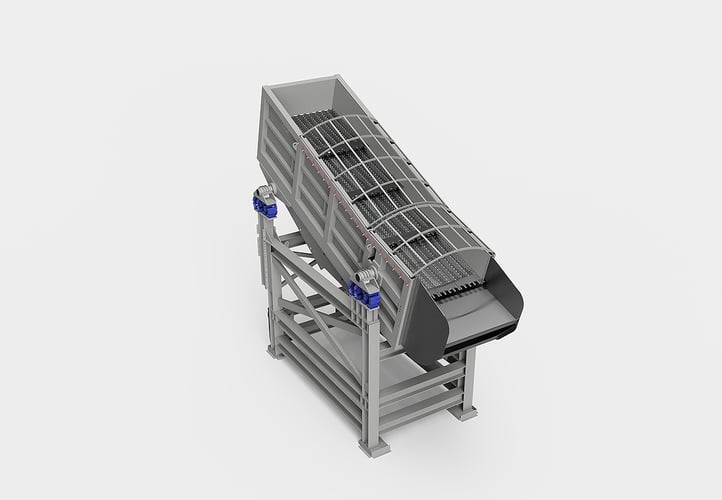

- Removable perforated sheet steel panels over the entire length, fixed to the conveyor trough
- Open Style
- Screening table in carbon steel
Video
Disk screen
Disk screens are suitable for separation of large quantities of pre-shredded materials such as industrial waste, bulky waste, and biomass. They guarantee high throughput and sizing precision, the ability to carry heavy “foreign” materials and excellent wear resistance.
- The disks are designed with a triangular shape to facilitate separation between heavy and light materials
- The shape of the smooth disks allows rapid cleaning, because the shafts can be easily reached with high pressure jets
- Any material that becomes wrapped around the shaft can be rapidly removed by cutting, since the build-up is easily accessible thanks to the shape of the disks
Rotary Screen
The rotary screen is a system for separating material of predetermined piece size.
Thanks to their special construction design, these machines provide high throughputs and good sizing precision, the ability to transport heavy “foreign” materials, and excellent wear resistance.
- Robust screen support structure made of tubular members, complete with inspection gangway on both sides and access ladder
- Under screen collection hopper and over screen feeding hopper
- Structure composed of HEB girders and tubular members to support the screen and the belt
- Robust arc welded cylindrical structure with bolt-on grids having different perforation sizes based on separation requirements.
