TWO-SHAFT SHREDDERS TR2A
The twin-shaft shredders of the TR2A series are designed for volumetric reduction and rough shredding of materials such as plastic, paper, cardboard, electrical cables, tyres, etc.
Description
The twin-shaft shredders are designed to guarantee effective volumetric reduction and roughing of materials, adapting to various industrial applications. The electric motorisation, combined with planetary gearboxes, ensures power and reliability even in the most complex processes.
Technical specifications
- Installed power: 2x22Kw
- Construction Year 2014 completely overhauled
- Integral blades 30 mm thick
- Cutting chamber length mm 1000
- Including electrical cabinet with possibility of PLC-controlled automatic rotor motion reversal
- Voltage 50Hz
MILLS LCB710-24
Lacerators are twin-shaft shredders with special blades specially designed to break up material but not reduce its volume.
- Power 2 x 110 KW
- Grinding body made of electro-welded steelwork
- No. 2 cylindrical shafts with a diameter of 295 mm onto which the Hardox tearing blades are welded
- Screening bench positioned below the blades to adjust the size of the output material
- Loading hopper
- Support base
- Hydraulic drive unit
Find out more

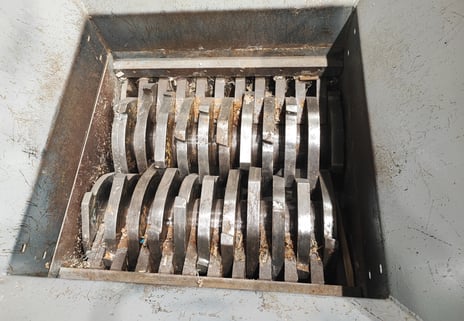

TR2A/1000 Two-Shaft Shredder
The TR2A series two-shaft shredders are designed for volume reduction and rough shredding of materials
such as plastics, paper, cardboard, electric cables, tyres, etc.
such as plastics, paper, cardboard, electric cables, tyres, etc.
- Installed power: 2x22Kw
- Year of construction: 2014 (fully overhauled)
- Solid blades, 30 mm thickness
- Cutting chamber length: 1000 mm
- Electrical panel included with PLC-controlled automatic rotor reverse function
- Voltage: 50 Hz
Find out more
