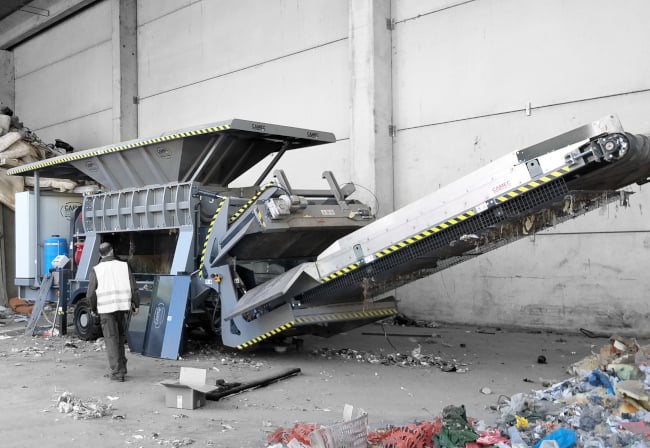

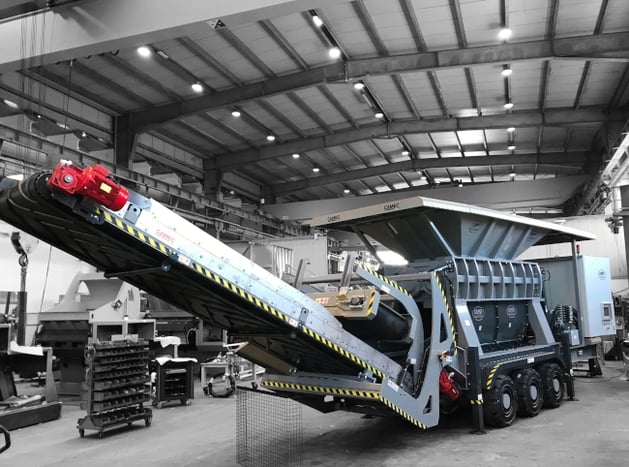

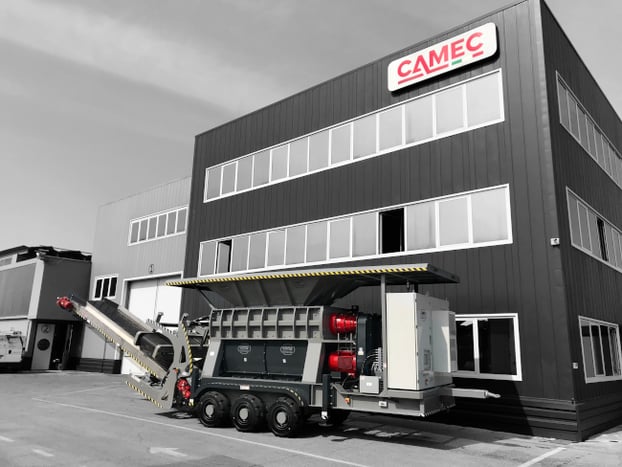

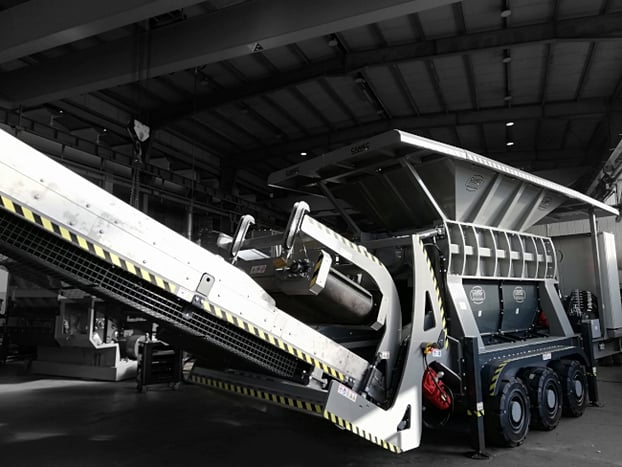

Mobile Shredder LCM520
The LCM line is a two-shaft mobile mill on wheels, equipped with milling type blades. This characteristic makes the machine suitable for opening of bags (typically unsorted MSW), and for milling and opening bales of pressed material.
Description
The LCM line is a two-shaft mobile mill on wheels, equipped with milling type blades. This characteristic makes the machine suitable for opening of bags (typically unsorted MSW), and for milling and opening bales of pressed material. These special blades are specifically designed to open the material and prepare it for the downline manual or automatic sorting stage.
The electric motor drive unit allows the machine to be used in spaces in which the use of a diesel engine is restricted.
Technical specifications
- Dimensions 12,700 x 2,750 x H 3,500 mm
- Cutting chamber 1,150 x 2,000 mm
- Shafts C/C distance 520 mm
- Weight 28,200 kg
- Motor 135 kW Electric
- Wheel mounted version
Video
Mobile Shredder DRM475
Model DRM475, in the hooklift or self-propelled crawler version, is equipped with intersecting blades and a central bar located at the material outfeed position.
- Arc welded monobloc structure composed of a cutting chamber with two rotating shafts
- High torque to the rotors with low speed rotation – 25/50 rpm
- Bearings amply separated from the shredding zone
- Rotor with integral blades in Hardox specifically designed to withstand feeding of materials with high ferrous metal contents
- Transmission by means of a special synchronized gear reducer directly coupled to the hydraulic motor for maximum efficiency in accordance with the installed power
Mobile Shredder DRM650
The DRM650 self-propelled shredder features a slow rotation double shaft and is crawler mounted, with hydraulic transmission.
- Arc welded monobloc structure composed of a cutting chamber
- Low speed rotation with high torque to the rotors
- Bearings amply separated from the shredding zone
- Cylindrical rollers with bolt-on cutter supports
- Cutting diameter of the cutters Ø650 mm
- Fixed blades in special hardened steel.
- Diesel engine and hydraulic transmission coupled directly to the engine
- Radio remote control for complete control of the machine
