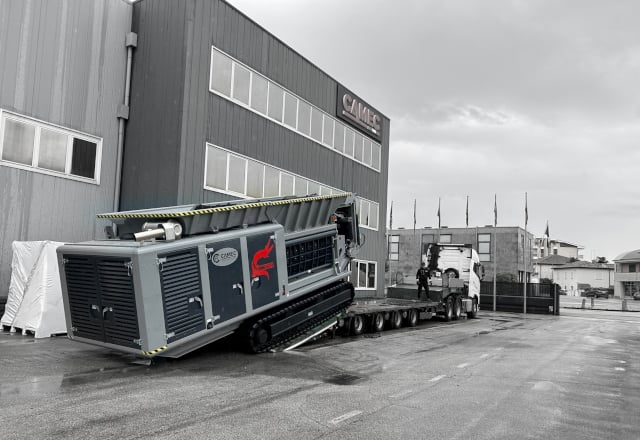

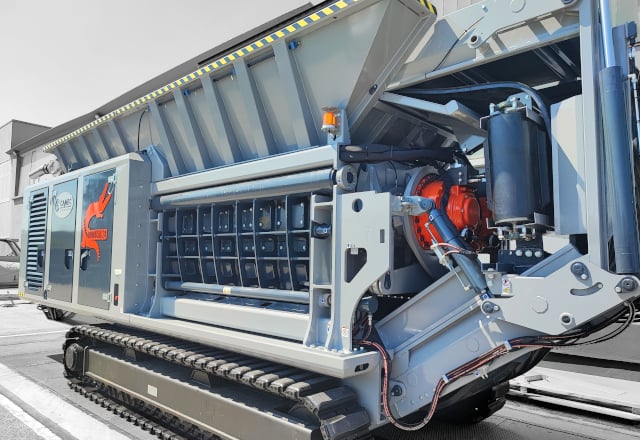

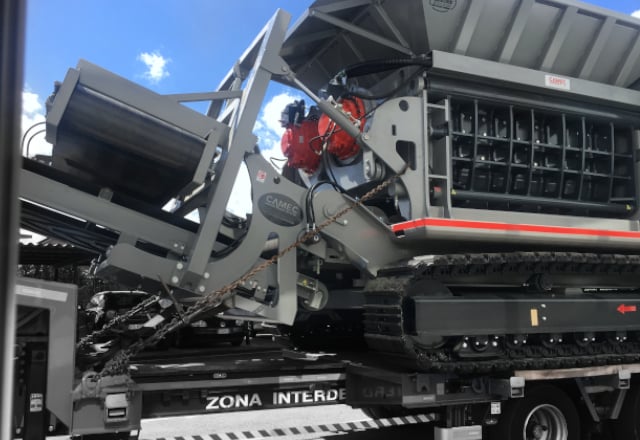

Mobile Shredder DRM650

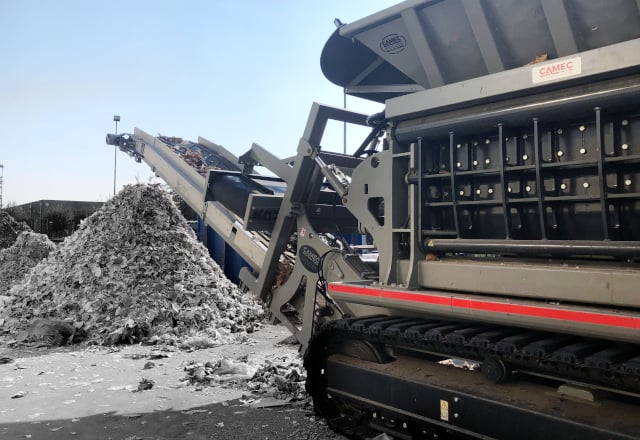

The DRM650 self-propelled shredder features a slow rotation double shaft and is crawler mounted, with hydraulic transmission.
Description
The DRM650 self-propelled shredder is equipped with a low-speed rotation double shaft and is a crawler mounted machine, with hydraulic transmission.
In this configuration the double rotor is combined with the use of interchangeable cutters and application of a sizing grid that makes it possible to obtain constant and controlled piece size at outfeed. The rotary cutters can be changed by means of a quick fit system with a single screw, thus allowing fast replacement in the case of breakage.
The use of a crawler, making the DRM650 “self-propelled” by means of a diesel engine, places this shredder at the top of the Camec range.
Technical specifications
- Arc welded monobloc structure composed of a cutting chamber
- Low speed rotation with high torque to the rotors
- Bearings amply separated from the shredding zone
- Cylindrical rollers with bolt-on cutter supports
- Cutting diameter of the cutters Ø650 mm
- Fixed blades in special hardened steel.
- Diesel engine and hydraulic transmission coupled directly to the engine
- Radio remote control for complete control of the machine
Video

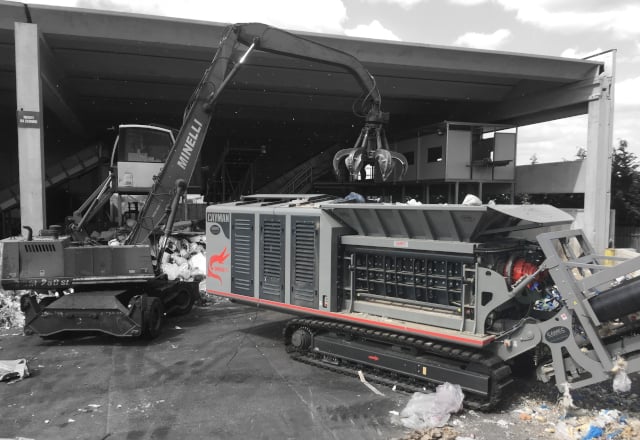

.jpg?width=700&height=467&name=Cayman%20Metalcarta%20(34).jpg)

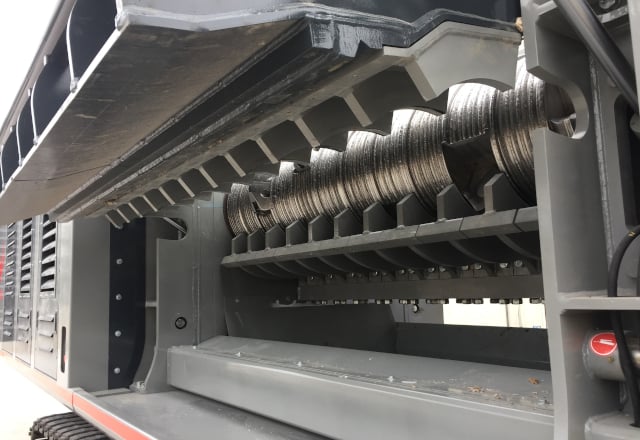

.jpg?width=700&height=467&name=Cayman%20varie%20(30).jpg)
Mobile Shredder DRM475
Model DRM475, in the hooklift or self-propelled crawler version, is equipped with intersecting blades and a central bar located at the material outfeed position.
- Arc welded monobloc structure composed of a cutting chamber with two rotating shafts
- High torque to the rotors with low speed rotation – 25/50 rpm
- Bearings amply separated from the shredding zone
- Rotor with integral blades in Hardox specifically designed to withstand feeding of materials with high ferrous metal contents
- Transmission by means of a special synchronized gear reducer directly coupled to the hydraulic motor for maximum efficiency in accordance with the installed power
Mobile Shredder LCM520
The LCM line is a two-shaft mobile mill on wheels, equipped with milling type blades. This characteristic makes the machine suitable for opening of bags (typically unsorted MSW), and for milling and opening bales of pressed material.
- Dimensions 12,700 x 2,750 x H 3,500 mm
- Cutting chamber 1,150 x 2,000 mm
- Shafts C/C distance 520 mm
- Weight 28,200 kg
- Motor 135 kW Electric
- Wheel mounted version
