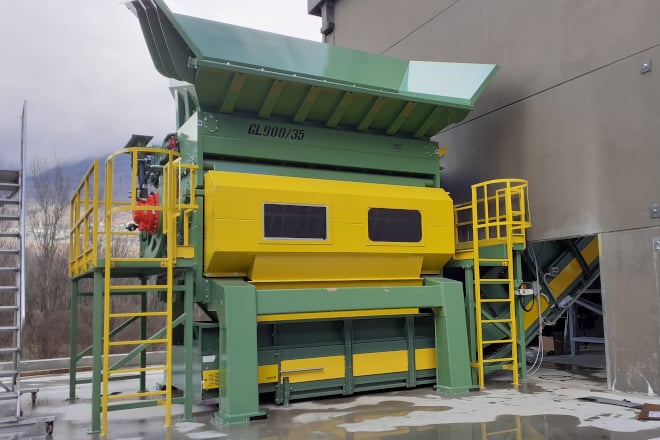

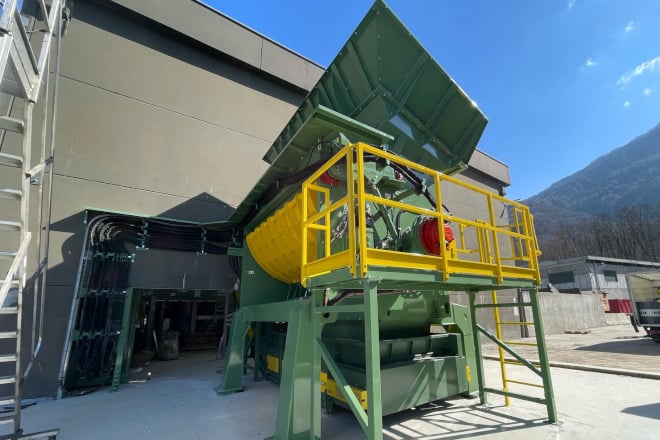

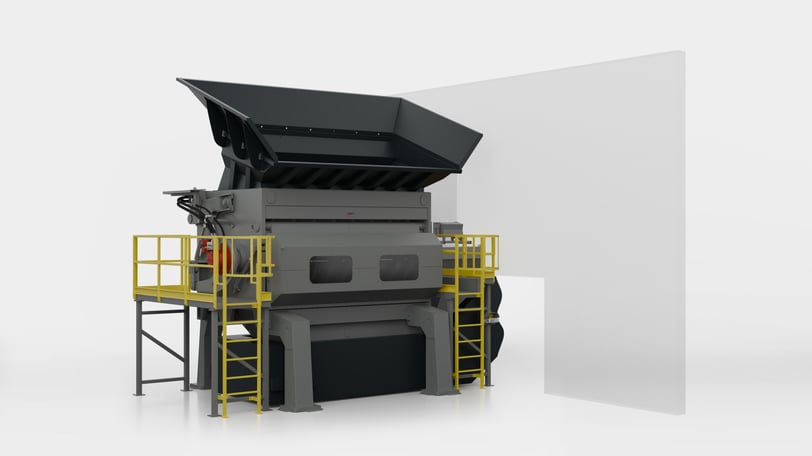

GL900/35 Single-Shaft Shredder with Hydraulic Drive

The GL900/35 is a heavy-duty single-shaft shredder with hydraulic drive, engineered to deliver high performance in the processing of bulky waste, municipal solid waste (MSW), and industrial waste.

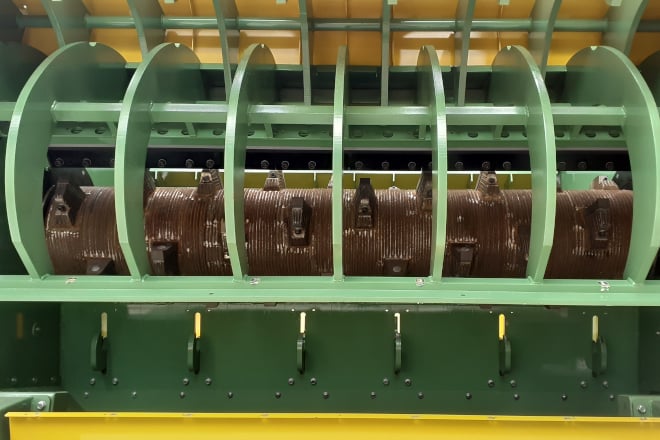

Equipped with a robust 3500 mm rotor fitted with hardened steel blades and Hardox500 counter-blades, it ensures a controlled output size and an hourly throughput of up to 25 tons.

GL900/35 – High-Performance Single-Shaft Shredder for Bulky, Municipal, and Industrial Waste

The GL900/35 is designed for intensive shredding applications involving bulky waste, municipal solid waste (MSW), and industrial residues. The machine features a heavy-duty 3500 mm rotor, built to withstand demanding workloads, with hardened steel cutting blades and Hardox500 counter-blades to guarantee consistent particle size and high throughput (up to 25 t/h).

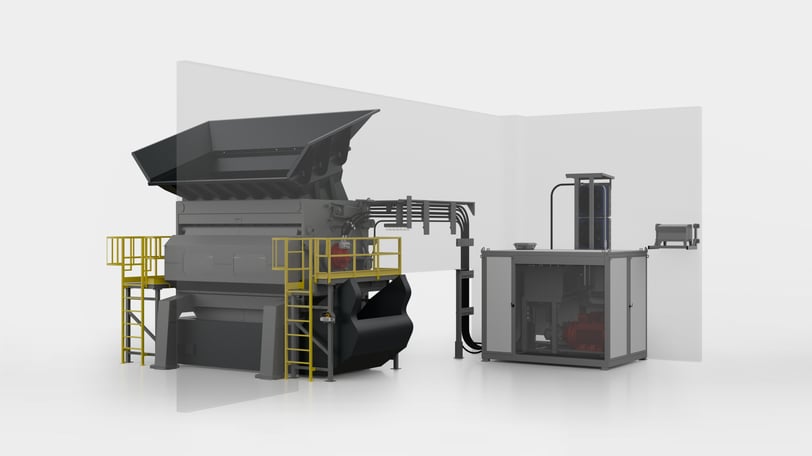

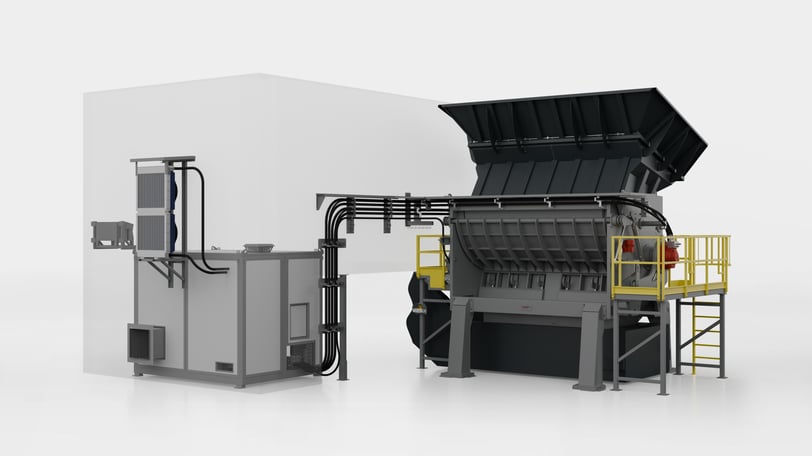

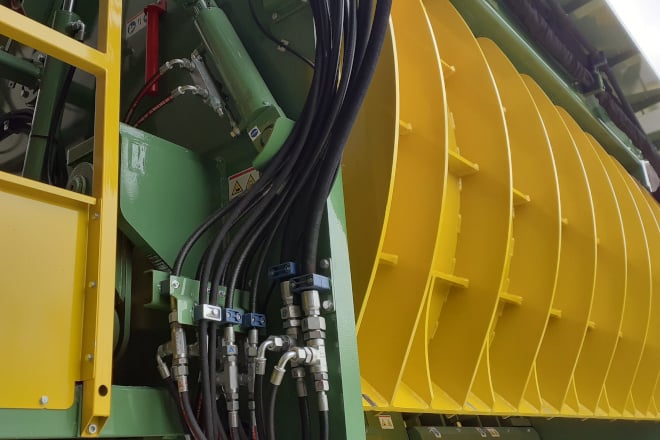

The shredder is powered by two 200 kW three-phase electric motors, delivering a total installed power of 400 kW, coupled with a high-performance hydraulic transmission system using Hägglunds hydraulic motors for optimal control, torque, and reliability.

In line with Industry 4.0 standards, the GL900/35 is equipped with:

Siemens PLC with intuitive touchscreen interface
Remote monitoring and control capabilities
Advanced self-diagnostic, remote diagnostics, and predictive maintenance functions

Additional features include:

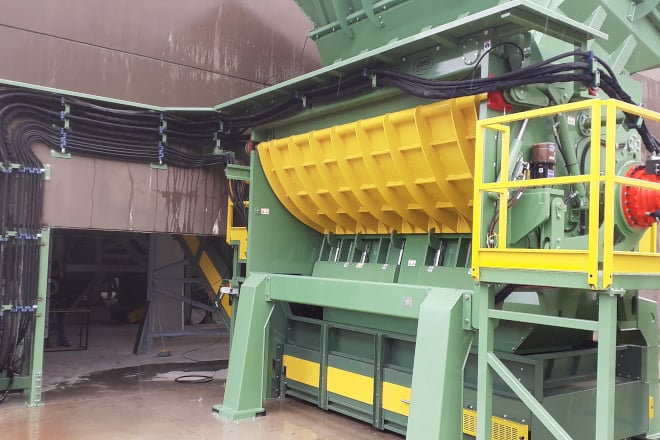

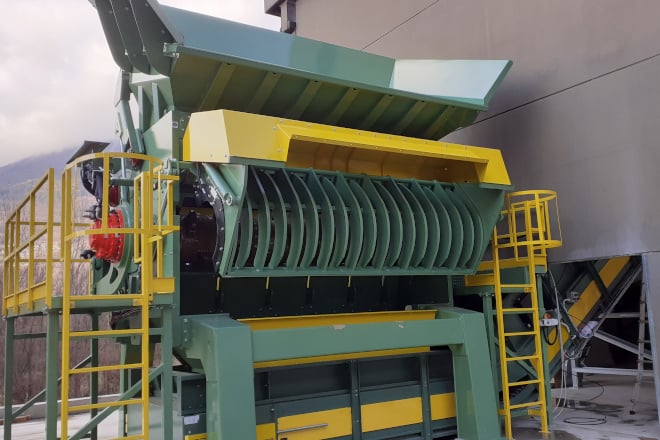

Hydraulically adjustable cutting screen
Fully automated maintenance access doors
Remote control operation
Integrated acoustic insulation
Advanced safety systems

The system also features an automated PLC-controlled shredding adjustment, enabling rapid remote configuration based on the type of input material and the required output size, depending on the final application.

Thanks to its advanced technological features, the GL900/35 fully meets the requirements for Industry 4.0 and 5.0 incentives, including eligibility for hyper-depreciation tax benefits where applicable.
